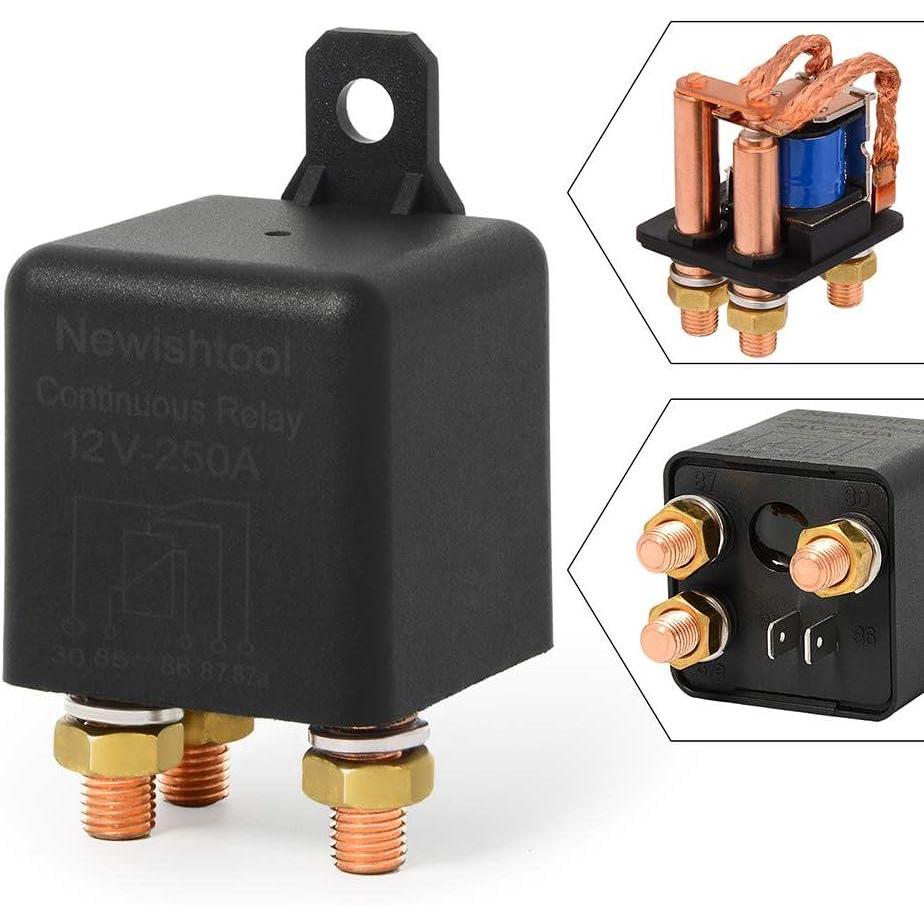

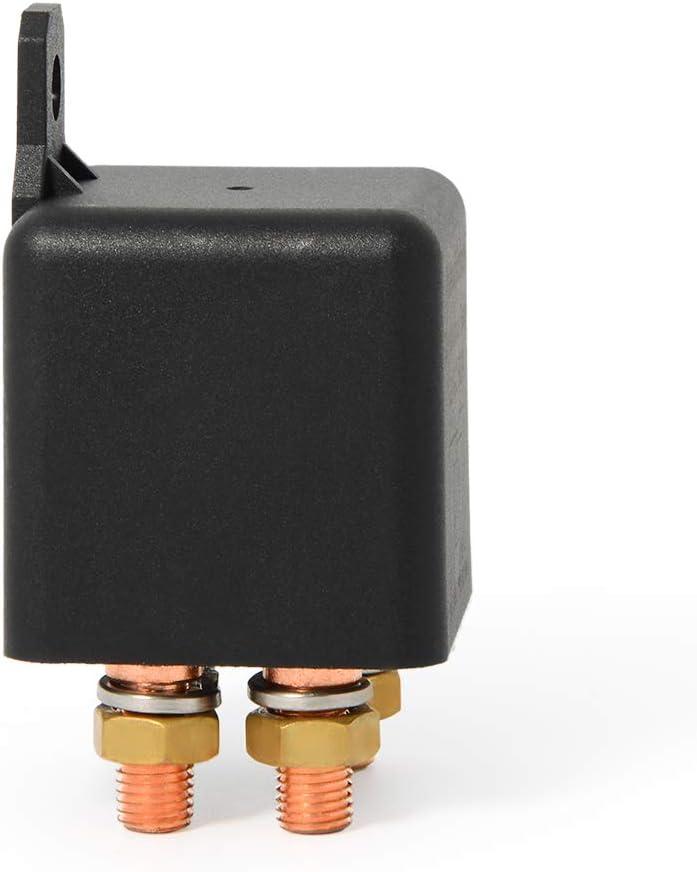

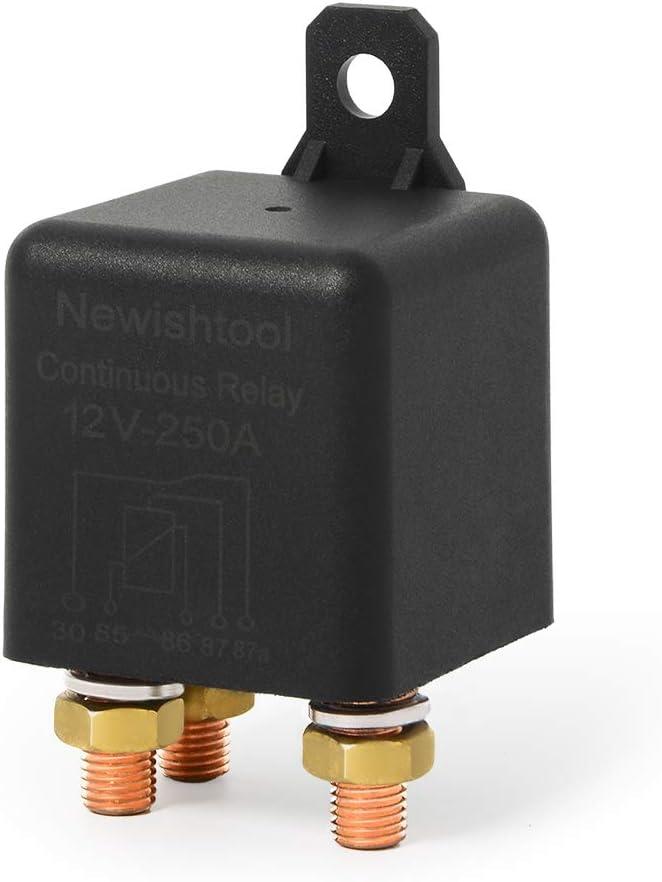

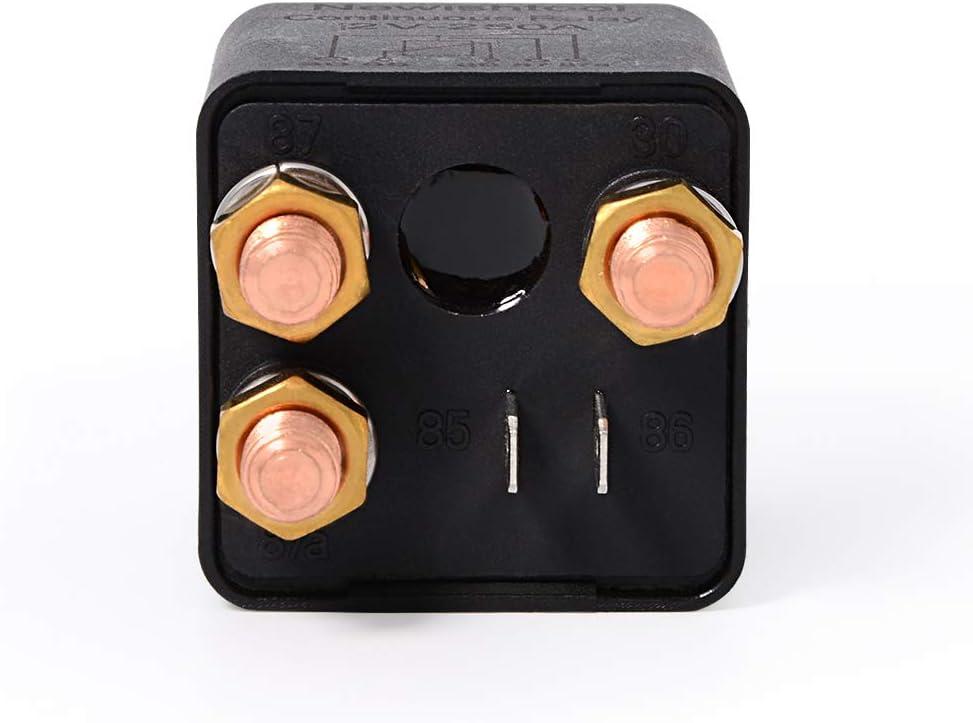

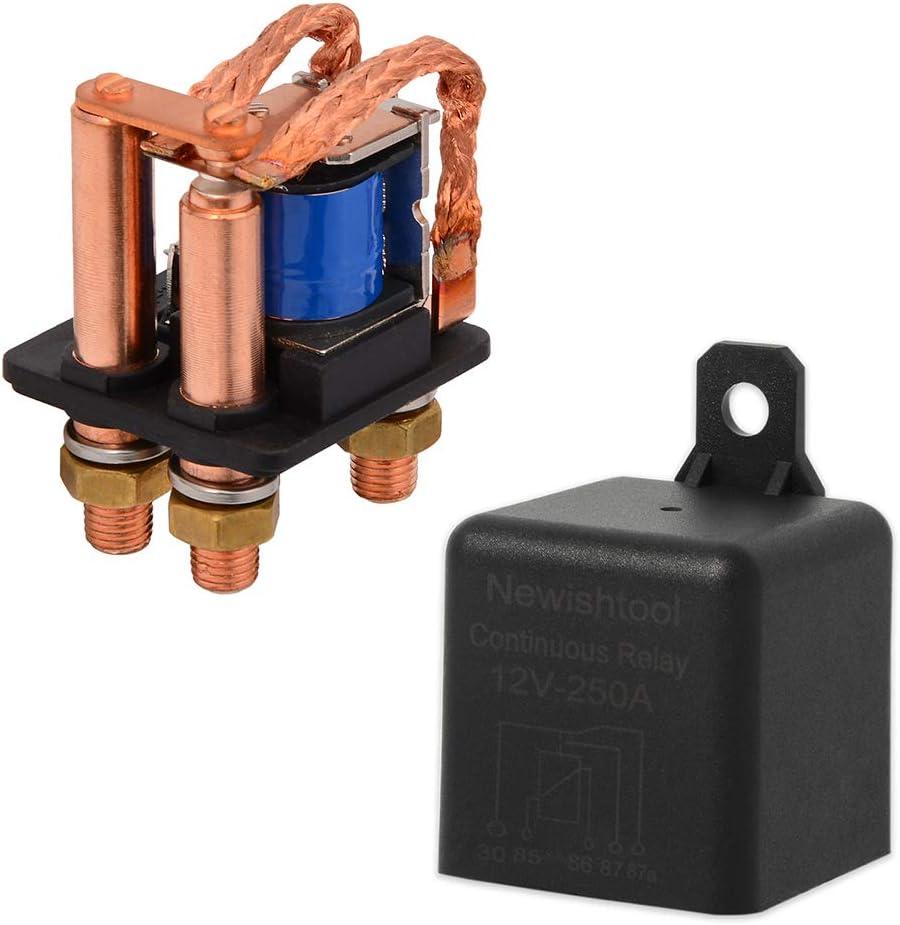

12V 250A Continuous Relay On/Off Power Switcher Automotive Starter Relays for Car Truck Boat Electrical Control, 5 Pin SPDT Split Charger + Heavy Duty Copper Lugs with Boots + Wire Terminal Connectors(1Pc Relay)

Description

Product Description:

The relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment. It can form program control circuit to realize automatic operation. It is one of the most important control elements.

This continuous relay is perfect for split charging two batteries in variety automotive and marine applications, for any vehicle needing a high current relay.

Product Specification:

1)Input Voltage: 12V,working voltage and loading voltage
2) Continuous Current: 200A/100A,normally open/normally closed
3) Peak Current: 250A/120A,normally open/normally closed
4) Automatic Connection Voltage: 6.8V-8.5V
5) Automatic Disconnection Voltage: 1.2V-3.V
6) Overvoltage: 14V
7) Relay Weight: 160g

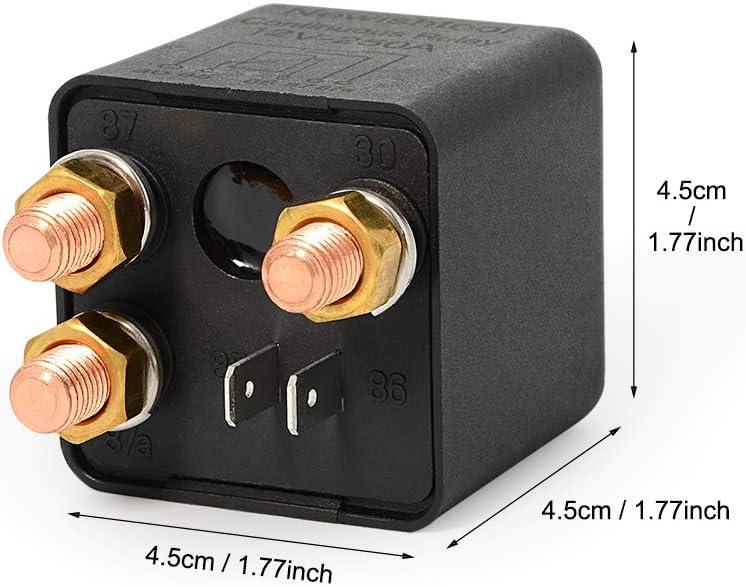

8) Relay Size: 45x45x81.5 mm
9) Bare copper cable ring size: 8.5mm
10) Blue terminal size: 6.3mm

Product Content:

2 x 12V 250A 5-Pin Continuous Relay
6 x 8.5mm bare copper wire lugs
4 x 6.3 mm blue terminals
6 x red footprint pins
